Products


Introduction

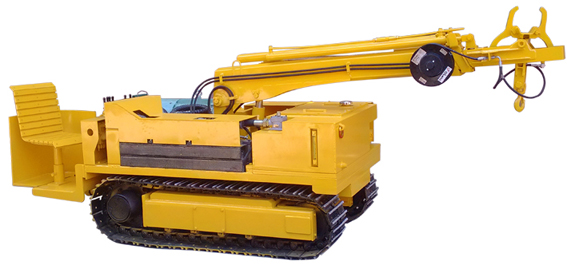

It is used to lifting the U beams in the tunnel supporting works. it is with the features: small size, compact structure, small width, low height, good climbing capacity.

Specification



Specification
單位
                    QKL-700/30
Max. lifting capacity
kg
700
Max. lifting height
m
≥3.8
lifting capcity at max. working radius
kg
180
Distance between hook and crawler outside
m
1.6±0.1
the max. distance from hook to frontside of the machine
m
≥3.5
Swivel angel
°
330±15
Gradient
°
±18
Traveling speed
km/h
1.8
Motor power
kW
30
Rated voltage
V
660/1140
Weight
kg
3600
Dimensions (L×W×H)
mm
4120×1200×1410
